| Introduce |
Lockable Gas Spring(Gas Strut) for Medical Bed
Used in wheel chair or other medical appliances, fitness Equipments, always for wheelchairs.
Quality
180, 000 times -passed TUV fatigue test
RoHS certificated by SGS
Passed ISO9000: 2001 International Quality System Certification
ISO/TS 16949
Spec.
Material: Steel
Color: Silver/black/others
Fittings: The staywire and hand clasping
The size can be made according the customer requirment.
Advantage
1)Minimum Order Quantity: 10 pcs
2)we can supply samples for free.(If order quantity more than 500 pcs)
3)Competivite price
4)Fast delivery time:1000 pcs within 3 days

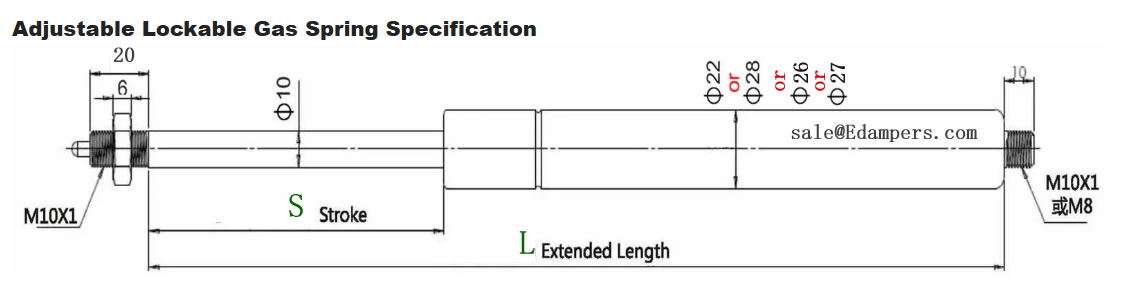

Type |
d |
D |
Stroke (S) |
Elastic lockin gLength(L) |
Rigid Locking
Length(L) |
F1 Force |
| KQ8-22 |
8 |
22 |
20-150 |
2S+55mm |
2S+S/3+45mm |
50-800N |
| KQ10-18 |
10 |
18 |
20-150 |
2S+55mm |
2S+S/3+45mm |
50-700N |
| KQ10-22 |
10 |
22 |
20-150 |
2S+55mm |
2S+S/3+45mm |
50-800N |
| KQ10-26 |
10 |
26 |
20-150 |
2S+55mm |
2S+S/3+45mm |
50-1200N |
| KQ10-27 |
10 |
27 |
20-200 |
2S+55mm |
2S+S/3+45mm |
50-1500N |
| KQ10-28 |
10 |
28 |
20-200 |
2S+55mm |
2S+S/3+45mm |
50-1500N |
| Comments: |
Lockable gas spring is also called controllable gas spring. According to the different locking medium, it can be divided into two categories: elastic locking and rigid locking. The elastic locking medium is gas, and the rigid locking medium is liquid, because the liquid is incompressible, the gas spring will get a relatively high locking force value after locking, and the displacement can be ignored, so it is called rigid locking. Due to the difference in structure, rigid locking gas springs can be made into tensile rigid locking, compressive rigid locking and bidirectional rigid locking. In order to meet the requirements of different working conditions. |
